It seems kind of weird to do a blog post around a feature that’s fairly well documented, but this came up twice this week, so I figured I’d throw it out there.
Scenario: I want to post up a record to be inserted into a table. The record will consist of a couple of regular values, but also a file, which will be stored as a BLOB.
OK, how does this happen?
CREATE TABLE "DOCUMENTS1" ( "ID" NUMBER GENERATED BY DEFAULT ON NULL AS IDENTITY MINVALUE 1 MAXVALUE 9999999999999999999 INCREMENT BY 1 START WITH 1 NOCACHE NOORDER NOCYCLE NOKEEP NOSCALE NOT NULL ENABLE, "FILE_NAME" VARCHAR2(100), "BLOB_CONTENT" BLOB, "MIME_TYPE" VARCHAR2(255), "CHAR_SET" VARCHAR2(128), "LAST_UPDATED" DATE ) /

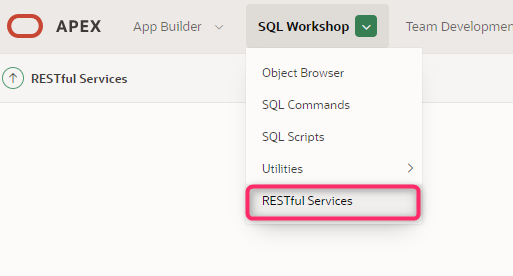

Step 1 : Create Post API in oracle apex by navigating to below options
Step 2 : Select ORDS Based Restful Services
Step 3 : Create Module
Step 4 : Enter Module details & click Create Module Button
Step 5: Click on Create Template & enter template details.
Step 6: Create Handler & Enter below details.
Method Post, Source Type PL/SQL
DECLARE image_id NUMBER; l_blob BLOB := :body; BEGIN IF l_blob IS NULL THEN :status := 'Please upload valid image'; --if blob is not attached :image_id := NULL; ELSE IF :id IS NULL THEN INSERT INTO documents1 ( file_name, mime_type, blob_content ) VALUES ( :file_name, :mime_type, l_blob ) RETURNING id INTO image_id; :status := 'Image Uploaded Successfully.';-- created :image_id := image_id; COMMIT; ELSE NULL; END IF; END IF; EXCEPTION WHEN OTHERS THEN :status := 'Error Occured While Uploading Image. ' || sqlerrm; image_id := NULL; END;
Step 7: Once handle is created then add parameter like below.
Click on Apply Changes
Steps to Call above API from postman.
Let’s start from the POST request perspective.
We’re going to send the ‘regular’ data via the header as parameters.
mime_type & file_name are columns in my database table.
The file is going to go up in the BODY of the request.
Click Send Button.
